K17 Sofa Headrest Tilt Mechanism
K17 K17B
−Adjusts 90°-180° with 6D×15° gear positions.
−170N/m base & 250N/m connection load per piece.
−30,000 continuous uses, 24h salt spray-resistant.
−40g/65g/82g sleeves, 20 pairs per 40×25×20.5cm carton.
−170N/m base & 250N/m connection load per piece.
−30,000 continuous uses, 24h salt spray-resistant.
−40g/65g/82g sleeves, 20 pairs per 40×25×20.5cm carton.
Quantity:
Product effectiveness perspecite | 90°-180° |
Gear Position x Angle | 6D x15° |
Sleeve options | 40g / 65g / 82g |
Service life | 30000 times/continuous |
| Base Load capacity | 170N / m / piece |
| Connection load capacity | 250N / m / piece |
Antionxidant activity | 24 hours ( salt spray ) |
Outer packaging | 40*25*20.5cm |
Quantity | 20 pairs / box |
Product effectiveness perspecite | 90°-180° |
Gear Position x Angle | 6D x 15° |
Sleeve options | 40g / 65g / 82g |
Service life | 30000 times/continuous |
Base Load capacity | 170N / m / piece |
| Connection load capacity | 250 N / m / piece |
Antionxidant activity | 24 hours ( salt spray ) |
Outer packaging | 40*25*20.5cm |
Quantity | 20 pairs / box |
Sofa Headrest Tilt Mechanism Features
6D × 15° Precision Tilt Adjustment

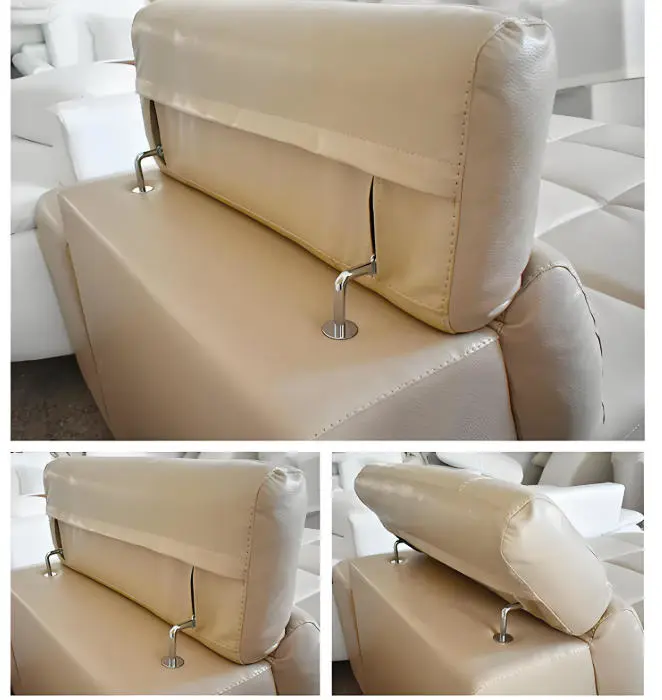

The Sofa Headrest Tilt Mechanism enables controlled headrest positioning across six fixed angles, ensuring stable and comfortable support for different sitting and reclining postures.
High-Strength Structural Performance
With 170N/m base capacity and 250N/m connection load, this tilt mechanism is suitable for thick cushions, heavy headrests, and reinforced sofa frames.
Corrosion-Resistant Industrial Protection
Tested with 24-hour salt-spray resistance, the structure maintains mechanical reliability during export shipping and long-term indoor use.
The Advantages of Sofa Headrest Tilt Mechanism
Engineered for Long-Life Application
30,000-cycle continuous durability supports high-usage sofas and recliner seating systems.
30,000-cycle continuous durability supports high-usage sofas and recliner seating systems.
Compatible with Multiple Manufacturing Requirements
Optional 40g / 65g / 82g sleeves provide flexible matching for different headrest designs and pole structures.
Optional 40g / 65g / 82g sleeves provide flexible matching for different headrest designs and pole structures.
Stable Gear Engagement & Smooth Motion
The precision tilt mechanism locks firmly without looseness, ensuring comfortable and secure headrest positioning.
The precision tilt mechanism locks firmly without looseness, ensuring comfortable and secure headrest positioning.
Optimized Export Packaging & Logistics
Packed 20 pairs per carton to improve handling efficiency and reduce transportation cost for bulk orders.
Packed 20 pairs per carton to improve handling efficiency and reduce transportation cost for bulk orders.
Sofa Headrest Tilt Mechanism FAQs
Q1: What types of furniture is this Sofa Headrest Tilt Mechanism suitable for?
It is ideal for sofas, recliners, modular seating, and ergonomic headrest systems.
It is ideal for sofas, recliners, modular seating, and ergonomic headrest systems.
Q2: Does the mechanism support heavy headrest cushions?
Yes — the 250N/m connection load capacity ensures stable support for thicker and heavier structures.
Yes — the 250N/m connection load capacity ensures stable support for thicker and heavier structures.
Q3: Are the sleeves optional for different designs?
Yes, 40g / 65g / 82g sleeve options allow flexible matching with various pole and frame specifications.
Yes, 40g / 65g / 82g sleeve options allow flexible matching with various pole and frame specifications.
Q4: Is the product suitable for export environments?
Yes — the 24-hour salt-spray performance enhances corrosion resistance during storage and transportation.
Yes — the 24-hour salt-spray performance enhances corrosion resistance during storage and transportation.
